​​​​​​​​​​​​ZUK DESIGN GUIDES

quick LINKS

FOR COAX TYPE​RG-174/U

RG-188/U

RG-316/U

Cable

TERMINATION INFO
Center Solder Cup
Shield Solder Post

© 2017 ZUK DESIGN GROUP

Amphenol Connex

PART NO

​112132

SPECIFICATIONS
Impedance (Ohms) 50
Cable Termination Crimp
Contact Termination Solder
Body Finish Gold
Body Material Brass
Contact Finish Gold
Contact Material Brass
Insulator Material PTFE
Max Frequency (GHz) 12.4
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165

FOR COAX TYPE​RG-58

FOR COAX TYPE​RG-174/U

RG-188/U

RG-316/U

BNC PLUG

COAXIAL CONNECTORS

Amphenol product page

MFR Drawing (pdf)

Cable

Amphenol Connex

PART NO

​132134

Amphenol product page

MFR Drawing (pdf)

Amphenol Connex

Amphenol product page

MFR Drawing (pdf)

SPECIFICATIONS
Impedance (Ohms) 50
Orientation Straight

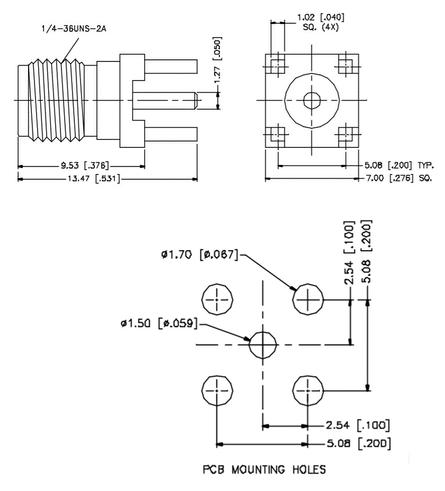

Termination Style PCB - Through Hole
Body Finish Gold
Body Material Brass
Contact Finish Gold
Contact Material Beryllium Copper
Insulator Material PTFE
Max Frequency (GHz) 18
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165

Cable

PART NO

​112624

Amphenol Connex

BNC  PLUG

PCB Mount

PART NO

​112116

SPECIFICATIONS
Impedance (Ohms) 50
Shield Termination Solder Post
Contact Termination Solder Cup
Body Finish Nickel
Body Material Brass
Contact Finish Gold
Contact Material Phosphor Bronze
Insulator Material PTFE
Isolated Yes
Max Frequency (GHz) 4
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165

Amphenol product page

MFR Drawing (pdf)

SPECIFICATIONS
Impedance (Ohms) 50
Cable Termination Crimp
Contact Termination Crimp
Body Finish Nickel
Body Material Brass
Contact Finish Gold
Contact Material Brass
Insulator Material Delrin
Max Frequency (GHz) 4
Min. Temp. (Celsius) -40
Max. Temp. (Celsius) 85

FOR COAX TYPE​RG-174/U

RG-188/U

RG-316/U

SPECIFICATIONS
Impedance (Ohms) 50
Cable Termination Crimp
Contact Termination Crimp
Body Finish Nickel
Body Material Brass
Contact Finish Gold
Contact Material Brass
Insulator Material Delrin
Max Frequency (GHz) 4
Min. Temp. (Celsius) -40
Max. Temp. (Celsius) 85
TERMINATION INFO
Center Solder
Shield Hex Crimp .128

Amphenol Connex

PART NO

​132123

SMA PLUG

Amphenol product page

MFR Drawing (pdf)

KEYSTONE

Amphenol product page

MFR Drawing (pdf)

Bulkhead

SMA JACK - Straight

SPECIFICATIONS
Impedance (Ohms) 50
Orientation Right Angle
Shield Termination Crimp
Contact Termination Solder
Body Finish Gold
Body Material Brass
Contact Finish Gold
Contact Material Brass
Insulator Material PTFE
Max Frequency (GHz) 12.4
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165

PART NO

​132114

Amphenol Connex

SMA PLUG - Rt Angle

Cable

BNC JACK - Isolated, Rear Entry

TERMINATION INFO
Center Hex Crimp .068
Shield Hex Crimp .178
TERMINATION INFO
Center Hex Crimp .068
Shield Hex Crimp .213
TERMINATION INFO
Center Solder
Shield Hex Crimp .128
